Product Description

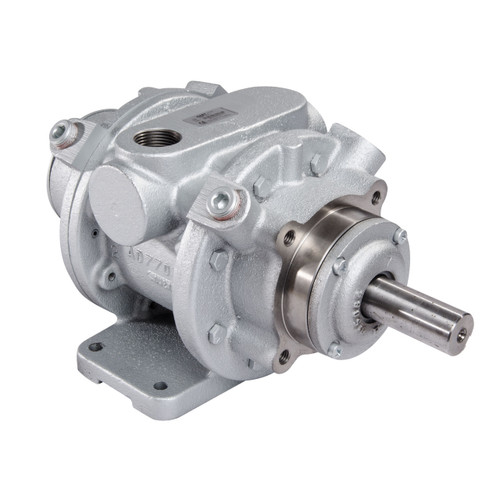

The 16AM-FRV-2 offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.

Motor Type: Air Motor
Lubrication Type: Lubricated
Maximum Power: 9.5 hp
Rotation: Reversible
Mounting Type: Face, Flange
Air Consumption: 275 cfm
Free Speed: 2,000 RPM
Port Size: 1-1/4"
Thread Standard: NPT
Operating Pressure Range: Maximum of +100 psi
Torque @ Max Speed: 290 in·lb
Stall Torque: 372 in·lb
Speed @ Max Torque: 300 RPM
Operating Temperature Range: +1 to +120 °C
Special Features: Air Cushioned Startup
Standards Met: 2 GD c T4, EC Directive 94/9EC (ATEX 100a), EX II
Overall Length: 357.1 mm
Overall Width: 203.2 mm
Overall Height: 186.4 mm

Download Technical Data Sheet
