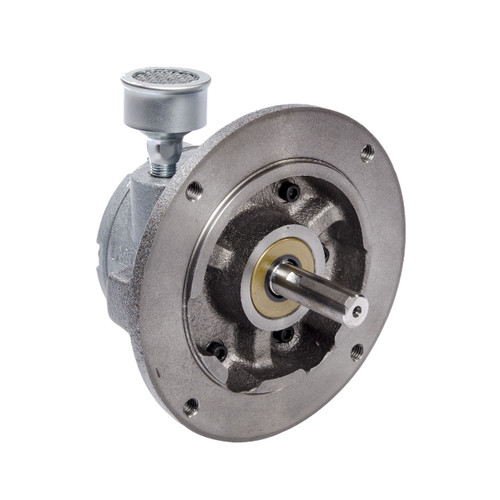

4AM-NRV-50C

The compact and portable 4AM-NRV-50C air motor offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Motor Type: Air Motor
Lubrication Type: Lubricated
Maximum Power: 1.7 hp
Rotation: Reversible
Mounting Type: Flange
Air Consumption: 78 cfm
Free Speed: 3,000 RPM
Port Size: 1/4"
Thread Standard: NPT
Operating Pressure Range: Maximum of +100 psi
Torque @ Max Speed: 36 in·lb
Stall Torque: 56 in·lb
Speed @ Max Torque: 300 RPM
Operating Temperature Range: +1 to +120 °C
Special Features: Air Cushioned Startup
Standards Met: 2 GD c T4, EC Directive 94/9EC (ATEX 100a), EX II
Overall Length: 169.9 mm
Overall Width: 165.1 mm
Overall Height: 165.1 mm
