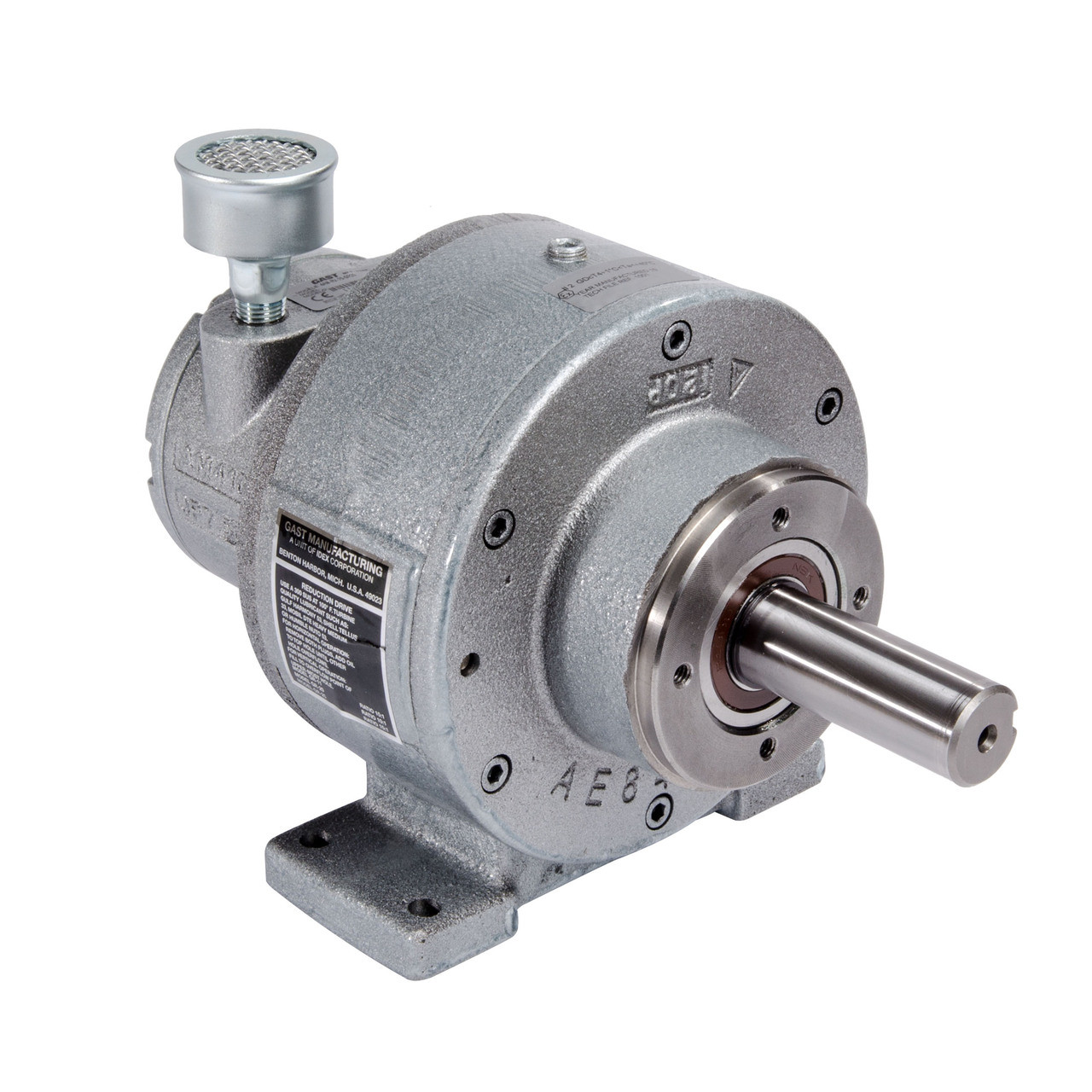

4AM-RV-75-GR25

The compact 4AM-RV-75-GR25 offers variable operating speeds and power output that can be adjusted to meet the precise needs of your application. Their 15:1 gear reducer is not only ideal for lower speed and higher torque applications, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Motor Type: Air Motor
Lubrication Type: Lubricated
Maximum Power: 1.7 hp
Rotation: Reversible
Mounting Type: Face/Foot
Air Consumption: 60.0 cfm
Free Speed: 200 RPM
Port Size: 1/4"
Thread Standard: NPT
Operating Pressure Range: Maximum of +80 psi
Torque @ Max Speed: 400.0 in-lb
Stall Torque: 650.0 in-lb
Speed @ Max Torque: 20 RPM
Operating Temperature Range: +1 to +120 °C
Special Features: Air Cushioned Startup
Standards Met: II GD c T4, EU Directive 2014/34/EU (ATEX 100a)
Overall Length: 295 mm
Overall Width: 155 mm
Overall Height: 208 mm
